Prefabricated House Vanamõisa - 133 m²

1/2

from 59 000 € + VAT

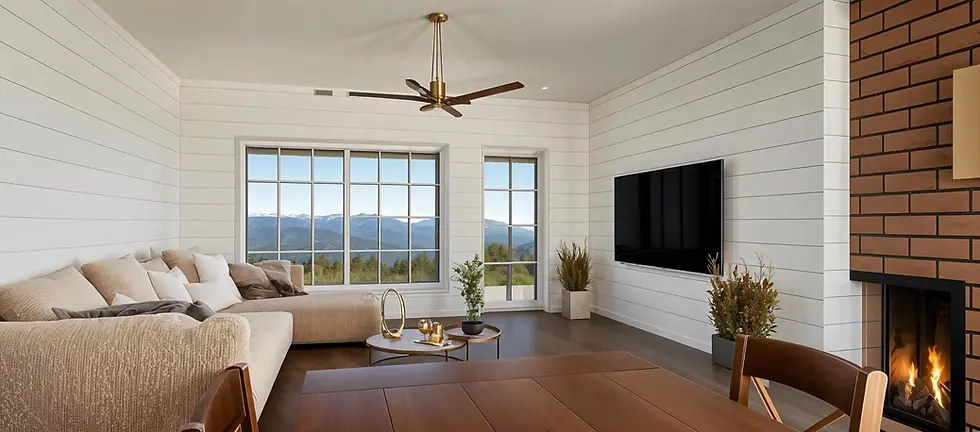

Interior

1/2

Floorplan

1/1

Living room/kitchen - 37.5 m²

Bedroom 1 - 11.4 m²

Bedroom 2 - 11.4 m²

Bedroom 3 - 10.3 m²

Corridor - 6.8 m²

Toilet - 2 m²

Shower - 7.8 m²

Sauna - 2.6 m²

Technical room - 2.6 m²

Entrance hall - 5.4 m²

Prefabricated house cross-section

Outer wall

Exterior cladding board

Double battening

Wind barrier plate

C24 45x195mm frame & insulation in between

Vapor barrier membrane

C24 45x45mm battening & insulation in between

Floor

Compacted subbase (4/32fr crushed stone / filler sand)

Limestone screenings

EPS120 3x100mm

C25/30 concrete slab, reinforcement, underfloor heating pipe

Underlay for floor covering

Floor covering

Roof/ceiling 1

Tin sheet or film plywood + 2xSBS

Double battening

Underlayment

Roof trusses with toothed plate C24 45x95mm

Intermediate ceiling

Loose fill insulation 505mm

C24 45x95mm toothed plate trusses

Vapor barrier membrane

C24 battening

Factory packages

Walls and roof

Walls, roof ja foundation

59 000 € + VAT

Elementmaja seinaelement, katus ja vundament.webp

93 500 € + VAT
